Furutech FP-3TS762

POWER SUPPLY CABLE(40M/Reel)　Adaptable to 20A More

Manufacturer: FURUTECHProduct code: 6514 Shipping and Payment

114 € incl. VAT
In stock

POWER SUPPLY CABLE(40M/Reel)　Adaptable to 20A More

Manufacturer: FURUTECHProduct code: 6514 Shipping and Payment

RATING

10 AWG α-Conductor(4.93 Sg.mm)


FEATURES

α(Alpha)-μ–OFC Conductor is the fine μ–OFC conductor wire strands treated with the α(Alpha) process.

Engineer's listening notes: Punchy, tight, deep bass, excellent transient and power response


SPECIFICATIONS

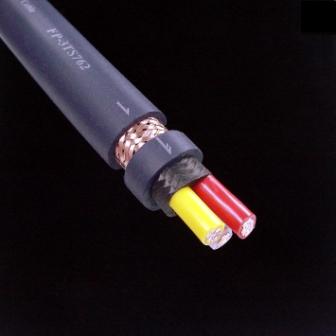

  • Conductor ：α(Alpha)-μ–OFC Conductor (7X35/0.16mm) (≒10 AWG) / (4.93 sq.mm)
  • Insulation:PE(Red、Natural、Yellow) Dia.:5.2mm　Red=Live、Yellow=Neutral、Clear=Earth.
  • Twisting:3 Cores Twisted Together
  • Inner Sheath:Flexible PVC (Black)
  • Shield:0.12mm α(Alpha) conductor wire Braid
  • Sheath:Flexible PVC (Dark Purple)
  • Overall Diameter: 15.5 mm
  • Electrical Properties / Test Method

Max. Conductor Resistance: 2.4 Ω／km, JISC3005 6 20℃
Min. Insulation Resistance: 2500 MΩ‧km, JISC3005 9.1 20℃
Dielectric Strength: AC 3000 V／1 min., JISC3005 8
