MELCO - E100A

Hard Disk Drive
The E100A audiophile hard disk drive offered an extra 8 TB of audio-grade storage for Melco digital music libraries which is succeeding model of E100 in 2018.
Sharing the N100 series’ half-width chassis, the E100A expansion drive seamlessly extended Melco-quality storage when extra capacity was needed especially for users who use RoonCore, PC and Music Server. More

Manufacturer: MELCOProduct code: P00180 Shipping and Payment

1 249 € incl. VAT
Specify product selection
Variant does not exist
black silver

Hard Disk Drive
The E100A audiophile hard disk drive offered an extra 8 TB of audio-grade storage for Melco digital music libraries which is succeeding model of E100 in 2018.
Sharing the N100 series’ half-width chassis, the E100A expansion drive seamlessly extended Melco-quality storage when extra capacity was needed especially for users who use RoonCore, PC and Music Server. More

Manufacturer: MELCOProduct code: P00180 Shipping and Payment

The E100A is different from previous model E100 improved of original main board and re-selected bigger capacity 8TB HDD. E100A is a specially selected audiophile-grade HDD drive, a Melco circuit board, plus Melco’s Highly Stable Storage System (HS-S2).The E100A also found a home in a number of recording studios where performance, build quality and reliability are vital attributes for equipment chosen by studio engineers.

  • Newly selected 3.5 inch 8TB HDD after comparative listening tests
  • Higher grade and high-quality clock-generator for better signal transmission

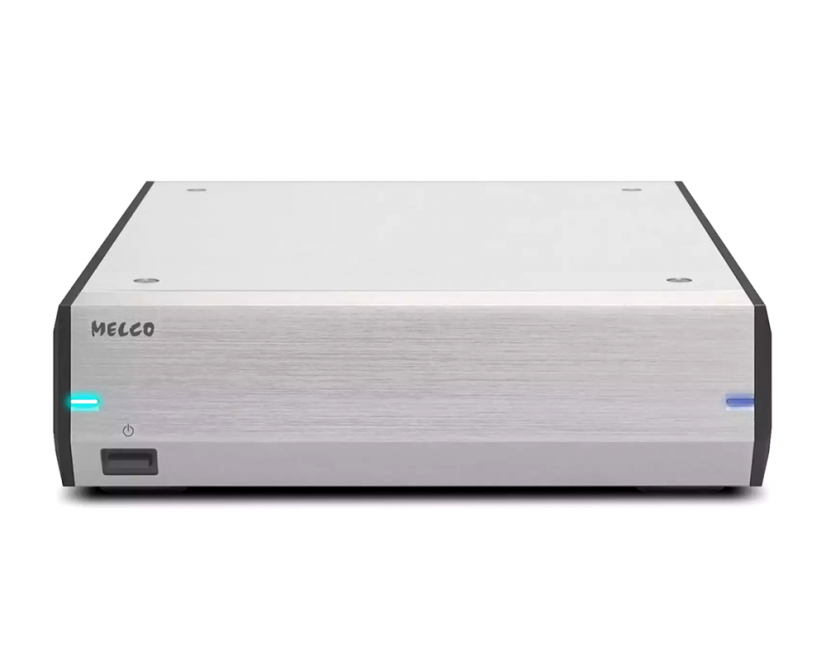

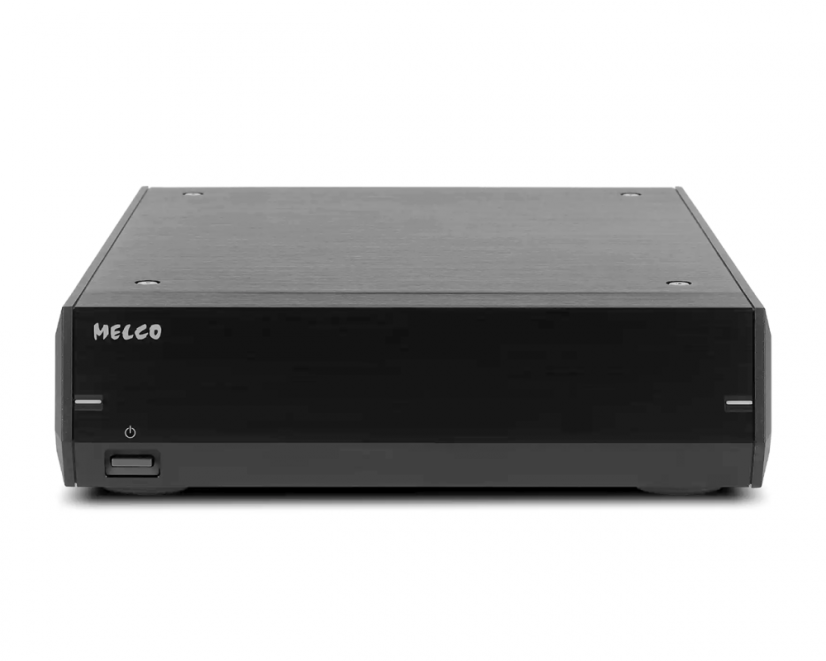

  • Half-width chassis with hairline finish aluminum front and top panel to match PC and Mac
  • 2 mm-thick under-chassis provides great rigidity
  • Thick aluminum casework
  • 3.6 kg (almost 3.6x that of standard IT drives)
  • Melco’s Highly Stable Storage System same as flagship model N1 securely holds the drive
  • Dedicated PCB houses the capacitors for the power supply
  • HOST USB (type B) for PC, MAC and MELCO Music Library to read the disc
  • DEVICE USB (type A) for USB DACs and USB audio interfaces playback
  • Access lamp section uses a uniquely developed “non-blinking” LED to minimize the effects of blinking.
  • HDD formatted with exFAT; can be reformatted with a PC or Mac
  • Black color only

HDD
Selected 8 TB HDD mounted with Melco HS-S2

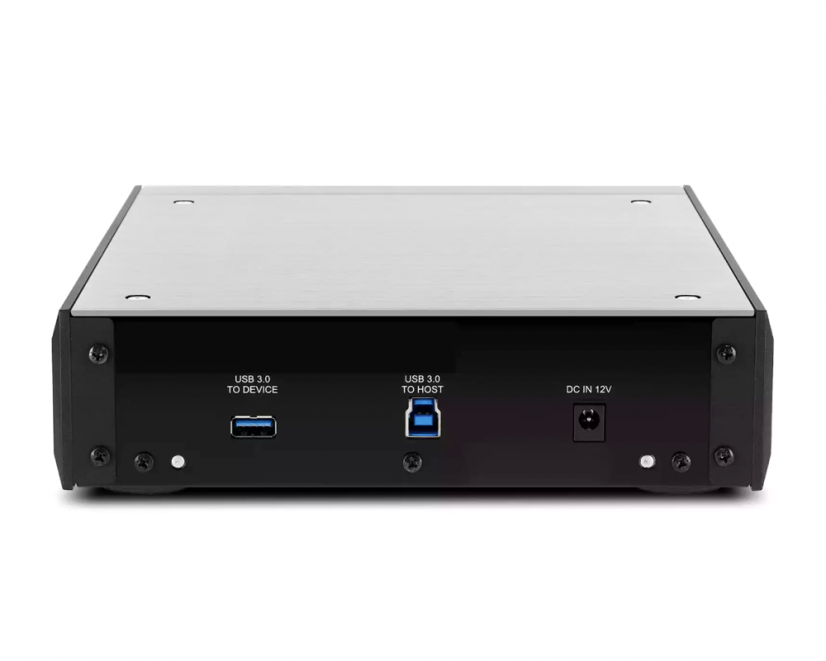

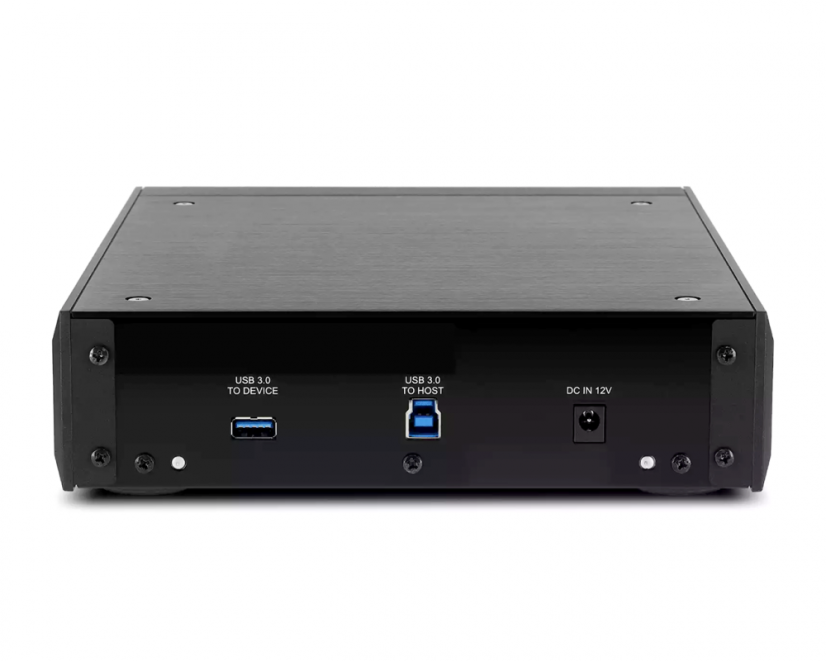

USB ports
USB 3.0 Type A x 1 ‘TO DEVICE’
USB 3.0 Type B x 1 ‘TO HOST’

Compatible equipment
Windows 11, Mac, exFAT compatible Linux based equipment, Raspberry Pi
Melco Music Library

Power supply
DC 12 V (48 W AC adapter)

Size 215 x 61 x 269 mm (W H L)
Weight 3.6 kg
