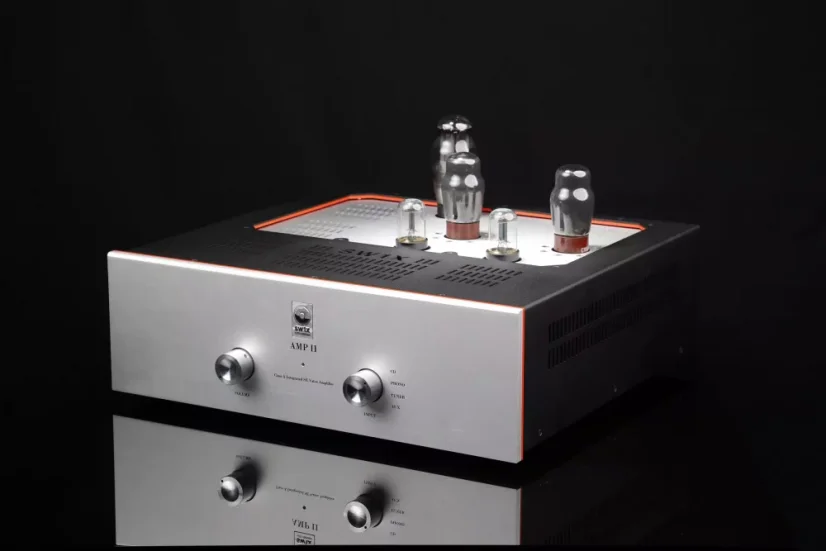

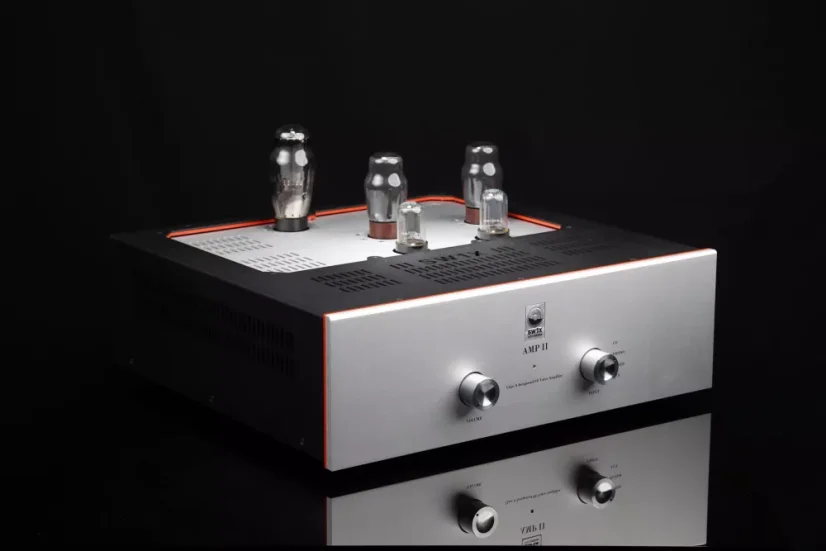

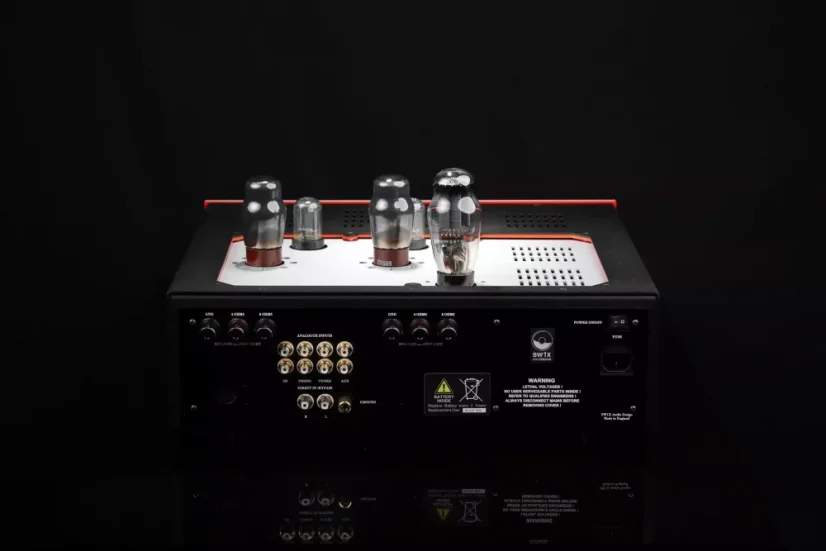

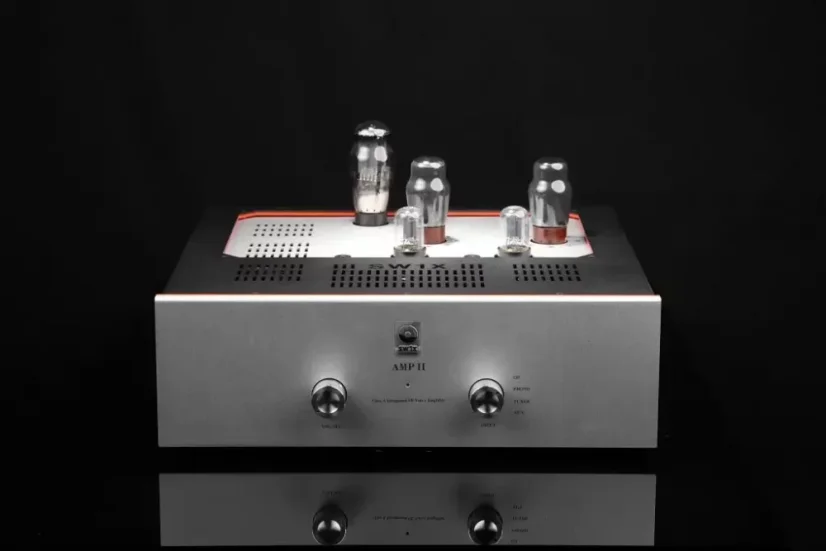

AMP II is a Pure Class A, Single Ended Amplifier. It is essentially a 2 gain stage Power Amplifier coupled with a High Quality Pre-amplifier..
It therefore is not only extremely transparent but also very musical and powerful sounding Integrated Amplifier.
The Triode Connected 6V6G Power Valves offer the same level of scale and holography as the Directly Heated Triodes without being DHT. More
Product code: P00220-2 Shipping and Payment
AMP II is a Pure Class A, Single Ended Amplifier. It is essentially a 2 gain stage Power Amplifier coupled with a High Quality Pre-amplifier..
It therefore is not only extremely transparent but also very musical and powerful sounding Integrated Amplifier.
The Triode Connected 6V6G Power Valves offer the same level of scale and holography as the Directly Heated Triodes without being DHT. More
Product code: P00220-2 Shipping and Payment
Available in different versions: Special and the Classic version with different power output transformer options (Permalloy or SHiB and UHiB) and all Copper or Copper/Silver windings
SW1X Audio Design™ AMP II Integrated Amplifier Features:
- Specially Selected and Harmonically Matched Component & Material Quality
- Single Ended, Zero NFB, Class A, Power Pentode (Triode Connected) Valve Power Amplifier
- Only 2 Amplification Gain Stages

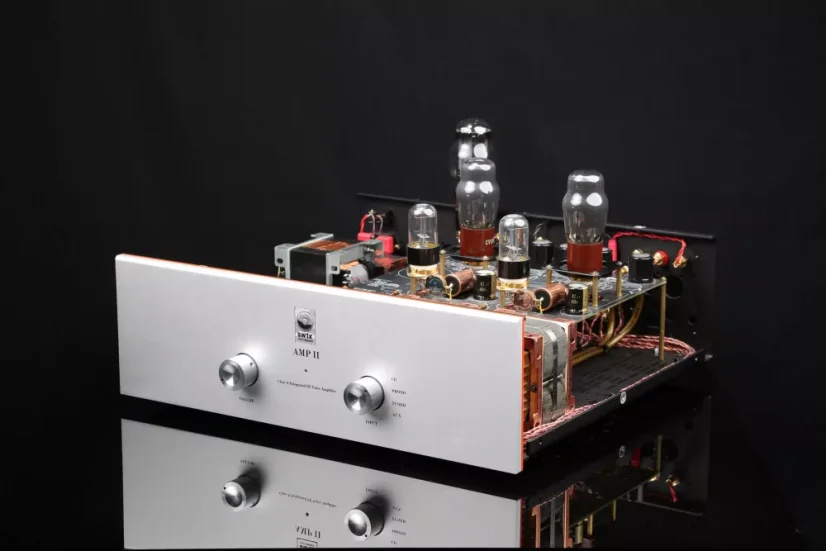

- Hybrid Point 2 Point Hardwiring Technique for the most consistent production results
- 2 x 6J5 Triode driver/input Stage valves driving the 2 x 6V6G Triode Connected Power Pentode Valves
- SW1X Audio Design™ Custom Designed Copper wound Super HiB DC Core (50 Watt) Signal Output Transformers
- Quasi Mono, Directly Heated Double Diode Valve Rectified B+ Power Supply
- Internally wired exclusively with our SW1X Genesis and Opus conductors
- Orient grain M6 EI core mains Transformers & Chokes
- Valve rectified Fixed Bias Power Supply
Tube Compliment: 2 x 6J5, 2 x 6V6, 1 x 5U4G
Specifications
Single Ended, Class A, Zero NFB, Output Power (W): 6, which sound at least like 35 Watts and the dynamic delivery feel like 350 W
when paired with with High Sensitivity Speakers (min 96dB/W/1m is recommended)
Input Sensitivity (V): 2
Input Impedance (Ohms): 47K or 100K
Output Impedance (Ohms): 4 & 8
Max Power Consumption (W): 200
Output Noise, Unweighted (mVrms): < 0.5
Dimensions (without tubes and feet): Height (mm) 250 x Width (mm) 440 x Depth (mm) 400
Weight (kg): 21
