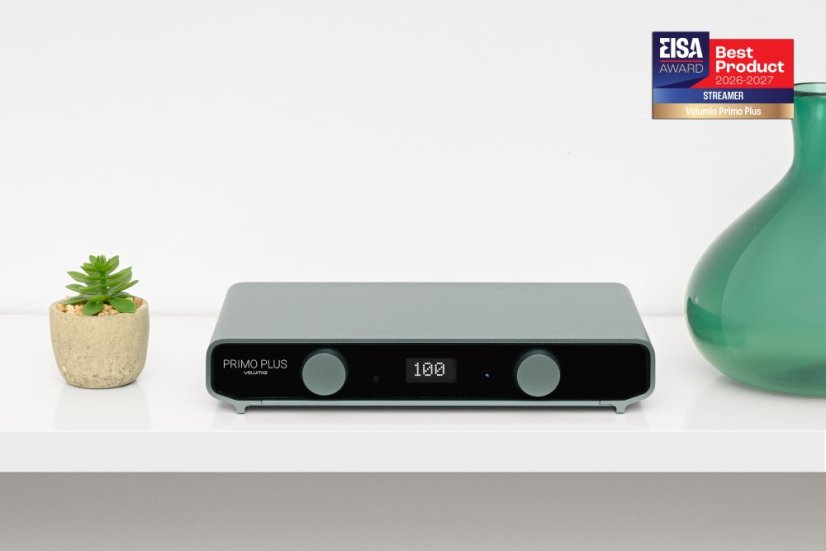

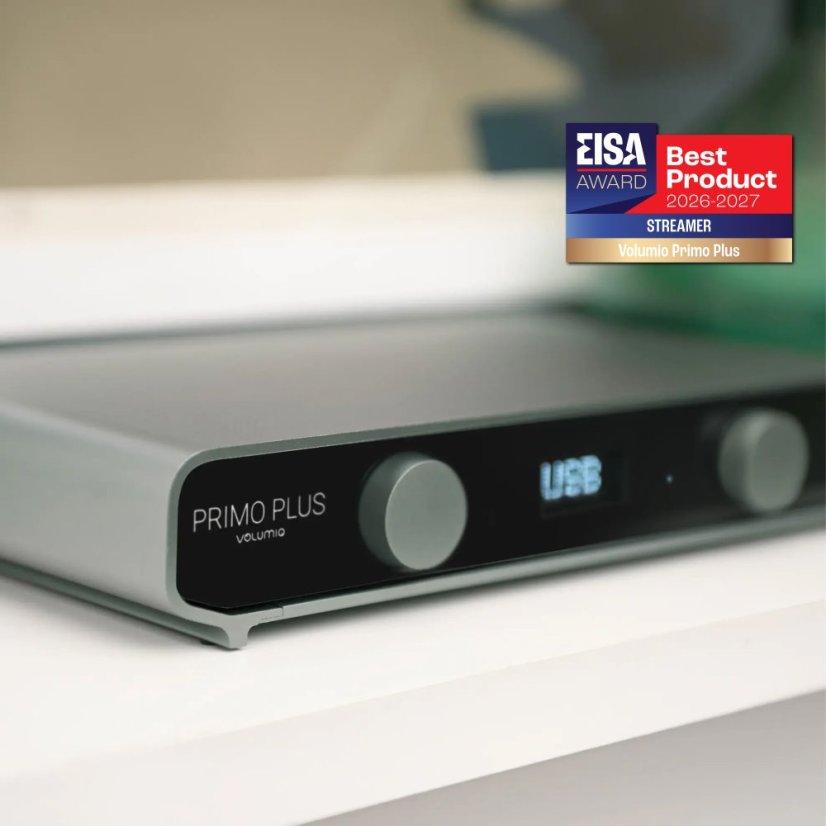

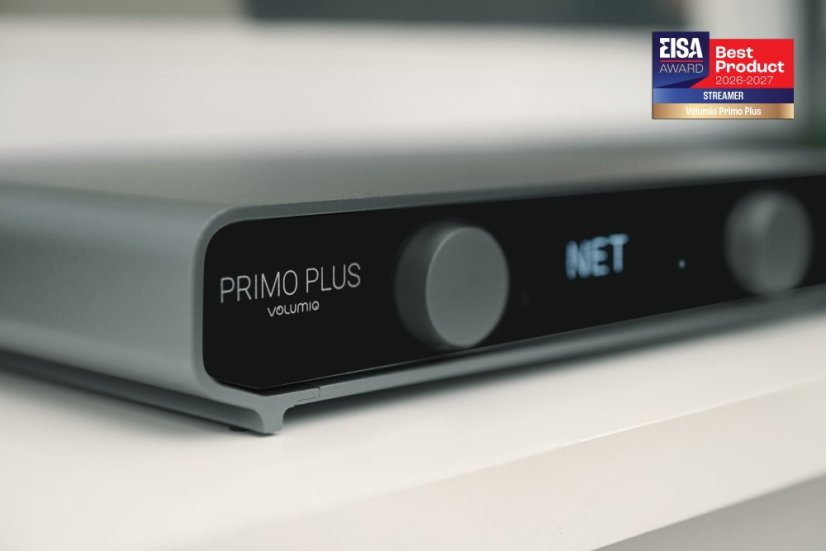

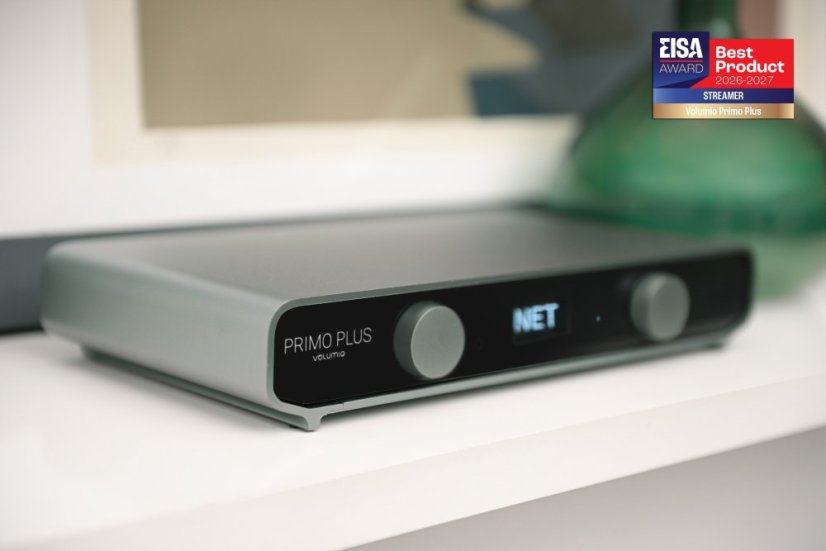

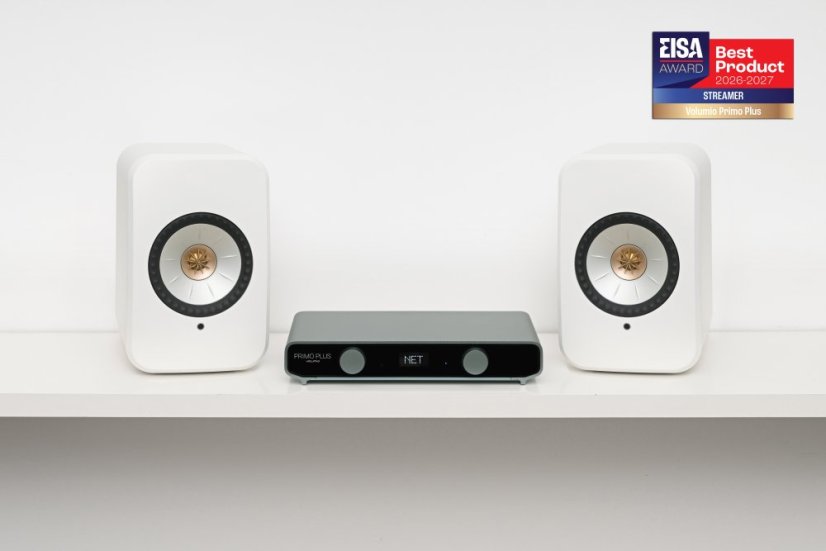

Volumio Primo Plus

Primo Plus is engineered from scratch to take our acclaimed Primo to a whole new level, combining 2 x ESS ES9039Q2M in a dual mono layout with upgraded OPAMPs, an ultra-low noise dual linear power supply, refined filtering, and a high precision clock that cuts jitter and lifts overall resolution.

It also introduces a broader range of digital inputs for greater system flexibility. USB-C handles native high-resolution audio, USB-A supports external storage, while optical, coaxial, Bluetooth, and full network streaming cover every modern source with ease. With the latest Volumio OS optimizing the entire signal path, the result is a deeper soundstage, sharper imaging, and a more natural sense of presence. Primo Plus doesn’t just improve on the original. It elevates every aspect of performance.

Primo Plus is designed to extract the purest possible signal from your music, starting with a high-precision clock that keeps phase noise and jitter extremely low for a cleaner, more stable presentation. Its advanced power architecture uses LC filtering and dedicated regulation for analog and digital sections, preserving subtle detail and control.

 You can shape the sound with 8 selectable DAC filters or switch to NOS mode for a more natural, unprocessed character. The fully balanced output stage maintains impressive channel separation, and the built-in volume control makes it easy to run Primo Plus directly into a power amplifier for a streamlined, high-performance setup.

Primo Plus is made for people who simply love music and want a more expressive, more engaging way to hear it. Fans of the original Primo will appreciate how much more power and refinement it brings, while anyone building or upgrading a system will enjoy how easy it is to set up and use. The included remote makes everyday control from the moment you turn on the device.

Primo Plus can be matched perfectly to any amplifier thanks to 8 selectable output levels from 0.5 to 6.30 Vrms, letting your system perform at its very best. And if you prefer a clean, compact setup, its built in preamp lets you connect straight to a power amp or active speakers for great sound with minimal effort.

On board, the Primo Plus runs Volumio, the platform that brings all your digital music together in one smooth and unified experience. Streaming services, local files, CDs via an external drive, Bluetooth sources, and connected storage are all managed from a single, easy interface, making your entire music world feel effortless and organized.

Volumio connects smoothly with major streaming services, letting you access Tidal, Qobuz, Spotify, and HighResAudio from the same interface. You can move between them freely, browse libraries, and play your saved music without changing apps or disrupting playback.

TECHNICAL SPECIFICATIONS PRIMO PLUS

HIGH PRECISION DUAL MONO DAC

2 ESS Sabre ES9039Q2M

HIGH RESOLUTION PLAYBACK

Up to PCM 768kHz/32bit and DSD512

ULTRA-LOW PHASE-NOISE

High-precision clock with ultra-low phase noise (90 fs) and jitter

ULTRA-LOW NOISE

High quality OPAMPs and line regulators

HIGH QUALITY POWER

LC filtering and dual linear stage with dedicated line regulators for analog and digital paths

DAC FILTERS

8 digital filters for fine tuning

BALANCED DESIGN

Fully balanced with balanced stereo output

VOLUME CONTROL

Pre-amp mode to drive power amps

OUTPUT VOLTAGE SELECTION

8 levels for balanced output (Vrms): 1.00, 1.55, 2.00, 3.00, 4.00, 5.00, 6.00, 6.30

8 levels for unbalanced output (Vrms): 0.50, 0.775, 1.00, 1.50, 2.00, 2.50, 3.00, 3.15

DIGITAL INPUTS

Network up to PCM 384kHz/32bit

USB-C (device) up to PCM 768kHz/32bit and DSD512

USB-A (host) for USB Flash Drive and HDD/SDD (via Network input)

S/PDIF (Coaxial, Optical) up to PCM 192kHz/24bit

Bluetooth 5.0 (via Network input)

MULTIROOM

Full multiroom compatibility

VIDEO OUTPUT

HD over HDMI in 4K/60fps

REMOTE

Aluminum remote included

APP

Volumio for iOS and Android

KNOBS

2 rotary encoder knobs with push-button

DISPLAY

1.3” OLED display

HIGH SPEED CONNECTION

Wired up to 1000M, Wi-Fi 802.11a/b/g/n/ac

TRIGGER

12V Trigger Output port, for turning ON and OFF external devices

DIGITAL AUDIO

Supported formats: DSD, WAV, FLAC, ALAC, AAC, Vorbis, Mp3, and more

Supported services: Tidal/Tidal Connect, Qobuz/Qobuz Connect, Spotify/Spotify Connect, Roon Ready, Audirvāna, HighResAudio, TuneIn, AirPlay, DLNA/UPnP

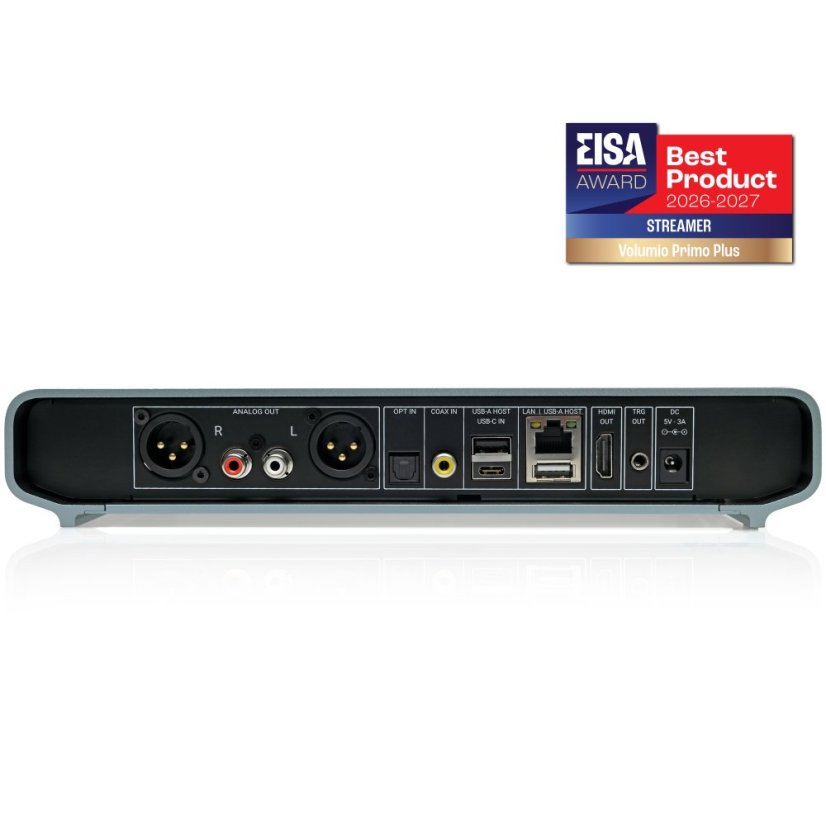

INPUTS AND OUTPUTS

Network: up to PCM 384kHz/32bit

USB-C (device): up to PCM 768kHz/32bit and DSD512

USB-A (host): for USB Flash Drive and HDD/SDD (via Network input)

S/PDIF Coaxial input: up to PCM 192kHz/24bit

S/PDIF Optical input: up to PCM 192kHz/24bit

Bluetooth RX: 5.0 (on NET)

Stereo balanced output (Vrms): 1.00, 1.55, 2.00, 3.00, 4.00, 5.00, 6.00, 6.30

Stereo unbalanced output (Vrms): 0.50, 0.775, 1.00, 1.50, 2.00, 2.50, 3.00, 3.15

HDMI output: Volumio OS video output for external display

HARDWARE SPECIFICATIONS

Input Power: 5V DC / 3A

Input Power Connector: Barrel jack 5.5/2.1mm (outer/inner diameter)

Input Power Polarity: Positive

CPU: Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz

USB-C: 1 USB Type-C connector (device)

USB-A: 2 USB Type-A connectors (host)

S/PDIF Coaxial input: RCA connector

S/PDIF Optical input: TOSLINK connector

Stereo Unbalanced output: RCA connectors

Stereo Balanced output: XLR connectors

LAN: 10/100/1000M

Trigger-out: 3.5mm jack, positive on tip
