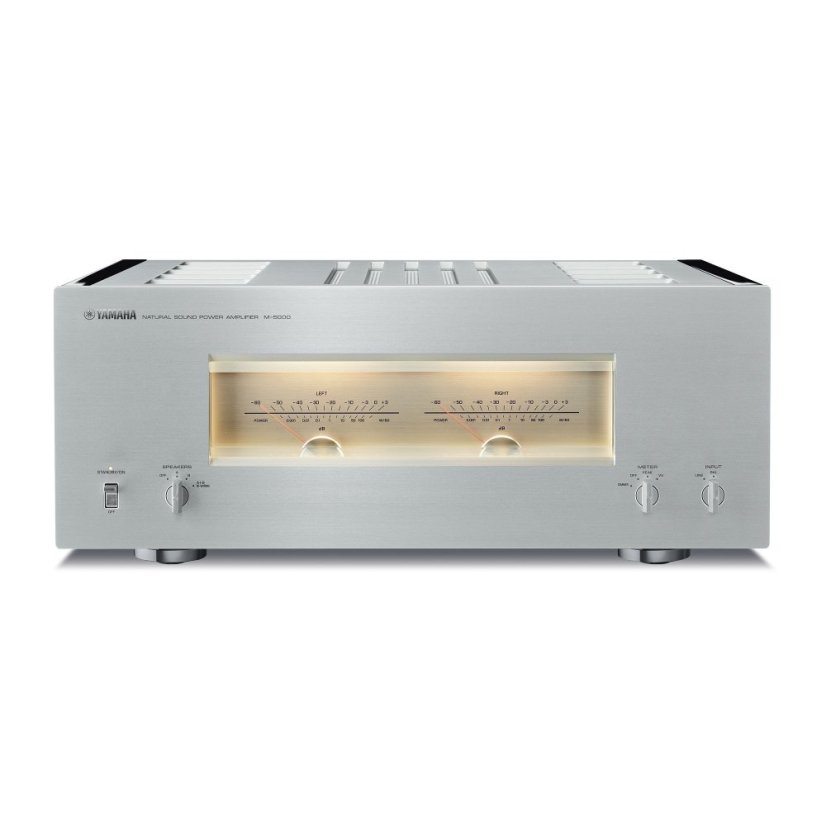

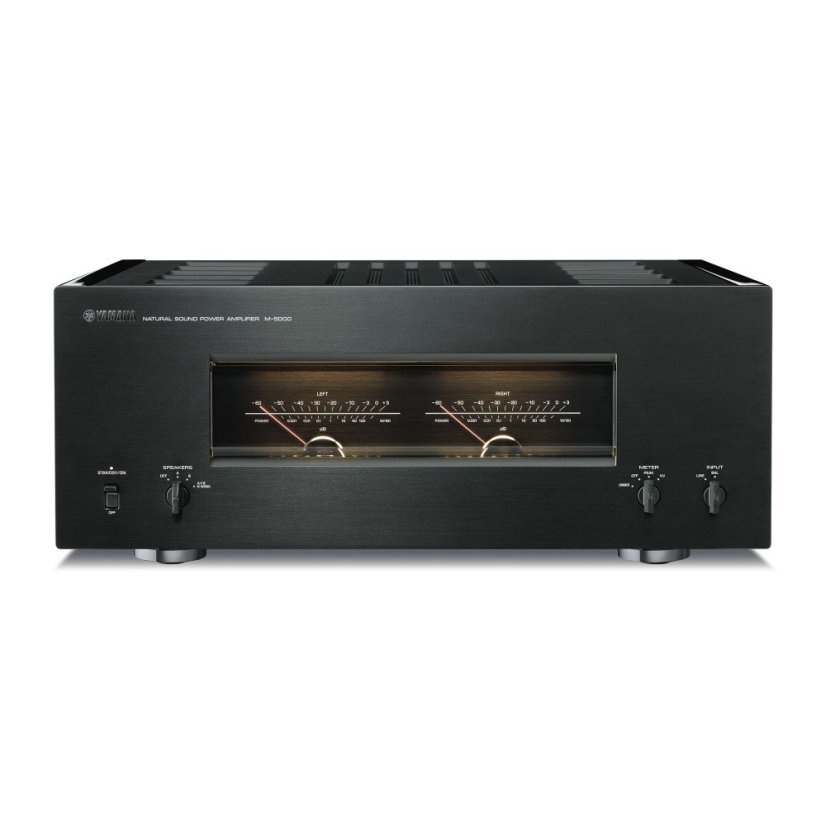

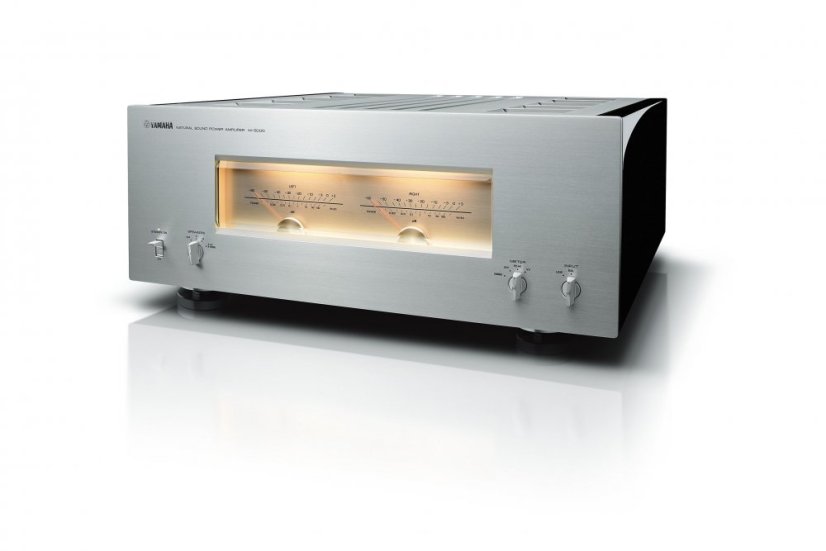

Yamaha M5000
Yamaha M5000
With more than 130 years of experience, Yamaha has grown to become the world's leading sound company. The M-5000 embodies this spirit with time-honoured craftsmanship and market-leading innovation and serves as the epitome of high-fidelity audio reproduction.
200 W + 200 W (4 ohm, 20 Hz-20 kHz, 0.07% THD, 2-ch driven)
100 W + 100 W (8 ohm, 20 Hz-20 kHz, 0.07% THD, 2-ch driven)
Meticulously designed, balanced signal transmission
Floating and balanced power amplifier layout for improved drivability
Perfectly symmetrical design for isolating left and right channels
Low impedance design with shortened signal and power supply paths
Improved construction delivers state-of-the-art rigidity

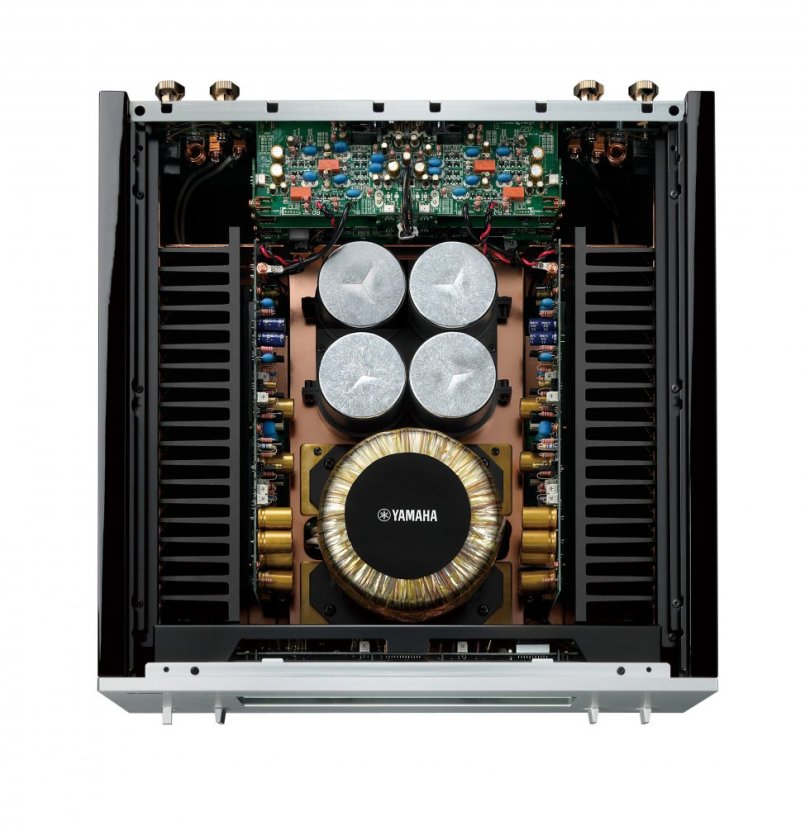

Massive toroidal core power transformer
2+3 Extended 5 year warranty via product registration More
Product code: P00135 Shipping and Payment
With more than 130 years of experience, Yamaha has grown to become the world's leading sound company. The M-5000 embodies this spirit with time-honoured craftsmanship and market-leading innovation and serves as the epitome of high-fidelity audio reproduction.
200 W + 200 W (4 ohm, 20 Hz-20 kHz, 0.07% THD, 2-ch driven)
100 W + 100 W (8 ohm, 20 Hz-20 kHz, 0.07% THD, 2-ch driven)
Meticulously designed, balanced signal transmission
Floating and balanced power amplifier layout for improved drivability
Perfectly symmetrical design for isolating left and right channels
Low impedance design with shortened signal and power supply paths
Improved construction delivers state-of-the-art rigidity
Massive toroidal core power transformer
2+3 Extended 5 year warranty via product registration More
Product code: P00135 Shipping and Payment
| M-5000 | ||
|---|---|---|

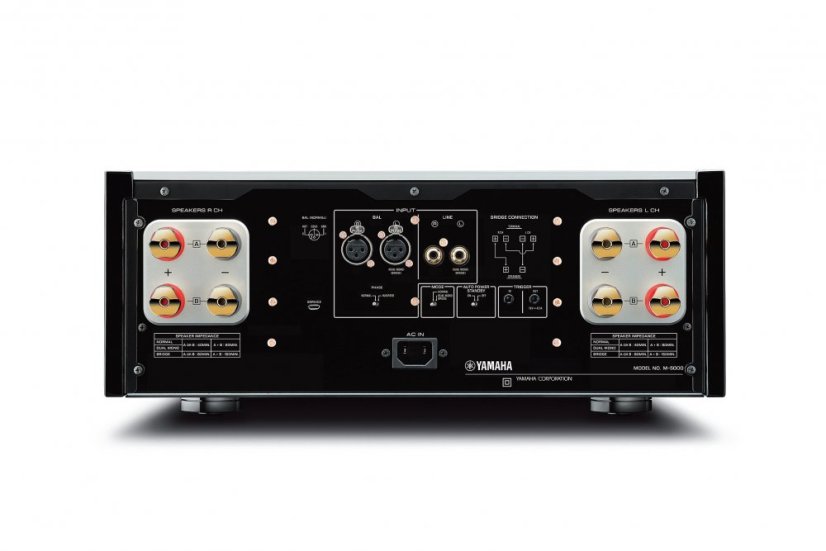

| Audio Specifications | Input Terminal | RCA: 1, BAL: 1, TRIGGER IN: 1 |
| Output Terminal | TRIGGER OUT: 1 | |
| Rated Output Power | 100 W + 100 W (8 ohm, 20 Hz-20 kHz, 0.07% THD, 2-ch driven), 200 W + 200 W (4 ohm, 20 Hz-20 kHz, 0.07% THD, 2-ch driven), 400 W (8 ohm, 20 Hz-20 kHz, 0.07% THD, Monaural driven) | |
| Dynamic Power Per Channel | [IHF] 125 W + 125 W (8 ohm), 170 W + 170 W (6 ohm), 250 W + 250 W (4 ohm), 500 W + 500 W (2 ohm) | |
| Dynamic Headroom | 0.97 dB (8 ohm) | |
| Maximum Output Power | 220 W + 220 W (4 ohm, 1 kHz, 0.7% THD) | |
| IEC Output Power | 125 W + 125 W (8 ohm, 1 kHz, 0.02% THD) | |
| Maximum Effective Output Power | [JEITA, 1kHz, 10% THD]135 W + 135 W (8 ohm), 270 W + 270 W (4 ohm) | |
| Power Bandwidth | 10 Hz-50 kHz (8 ohm, 0.1% THD, 45 W) | |
| Damping Factor | 300 or higher (8 ohm, 1 kHz) | |
| Input Sensitivity / Input Impedance | (BAL) 2.0 Vrms / 47 kohm, (LINE) 1.0 Vrms / 47 kohm [1 kHz 100 W / 8 ohm conversion] | |
| Maximum Input Signal Voltage | (BAL) 2.20 Vrms [1 kHz, 0.5% THD], (LINE) 1.10 Vrms [1 kHz, 0.5% THD] | |
| Frequency Response | +0 dB / -3 dB (5 Hz-100 kHz), +0 dB / -0.3 dB (20 Hz-20 kHz) | |
| Total Harmonic Distortion Plus Noise | 2ch driven: 0.035% (LINE [BAL] to SP Out, 20 Hz-20 kHz, 50 W, 8 ohms), Monaural driven: 0.05% (LINE [BAL] to SP Out, 20 Hz-20 kHz, 200 W, 8 ohms) | |
| Channnel Separation | 90 dB or higher (1 kHz, Input 1.0 kohm Terminated), 70 dB or higher (10 kHz, Input 1.0 kohm Terminated) | |
| Signal-to-Noise Ratio | [IHF-A network, Input 1 kohm shorted] 110 dB | |
| Residual Noise | [IHF-A network] (BAL) 40 uVrms, (LINE) 50 uVrms | |
| Meter Class | The 2.5th class | |
| General | Power Consumption | 400 W |
| Standby Power Consumption | Off Mode: 0.1 W, Standby Mode: 0.2 W | |
| Maximum Power Consumption | 800 W | |
| Power Management (Auto Power Standby) | Yes | |
| Dimension (W×H×D) | 435 x 180 x 464 mm; 17-1/8” x 7-1/8” x 18-1/4” | |
| Weight | 26.9 kg; 59.3 lbs. | |
