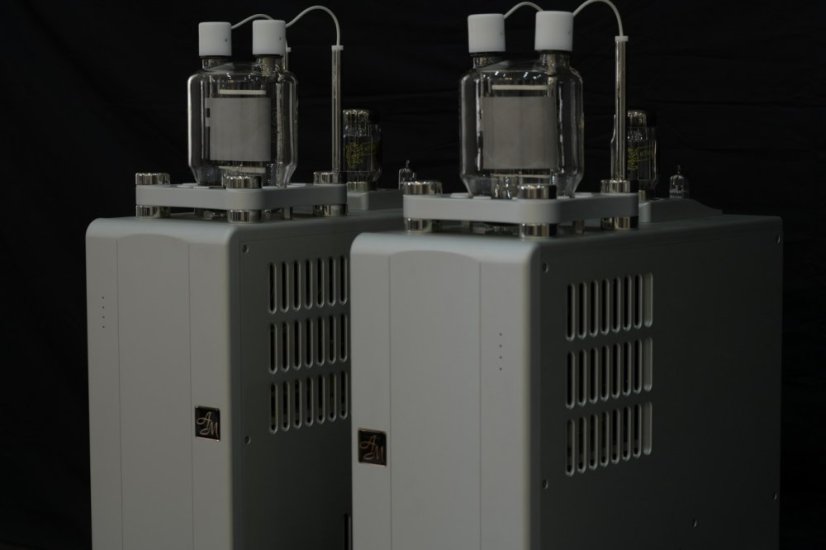

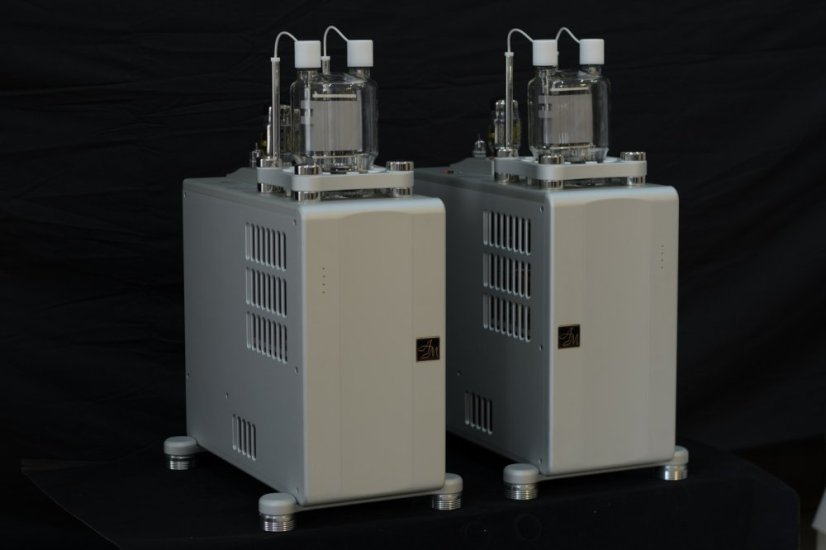

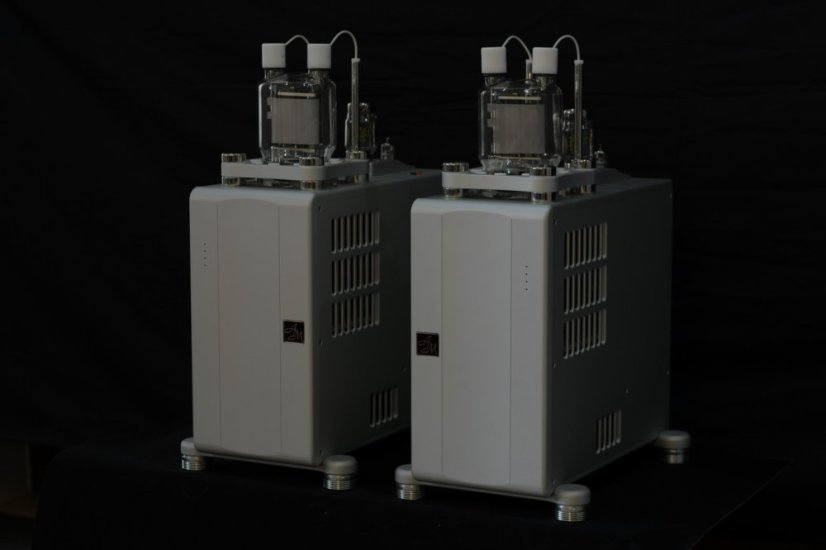

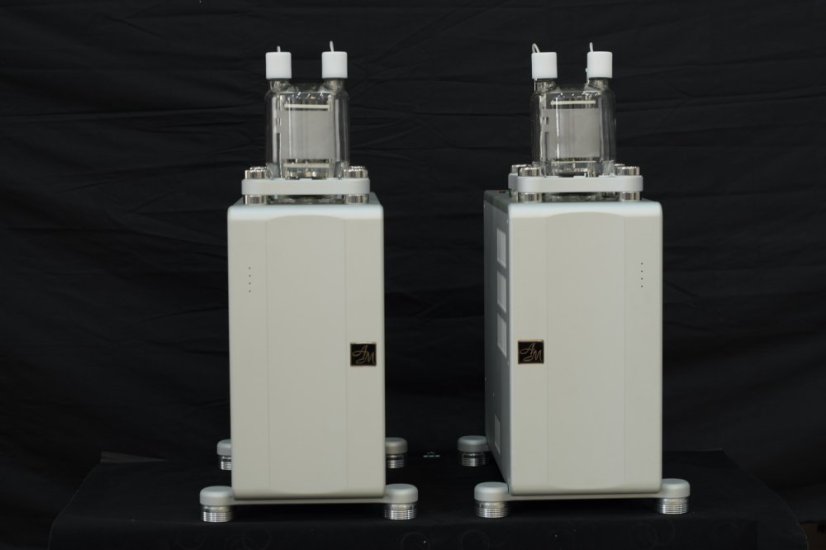

AM 833M Monoblock Amplifier

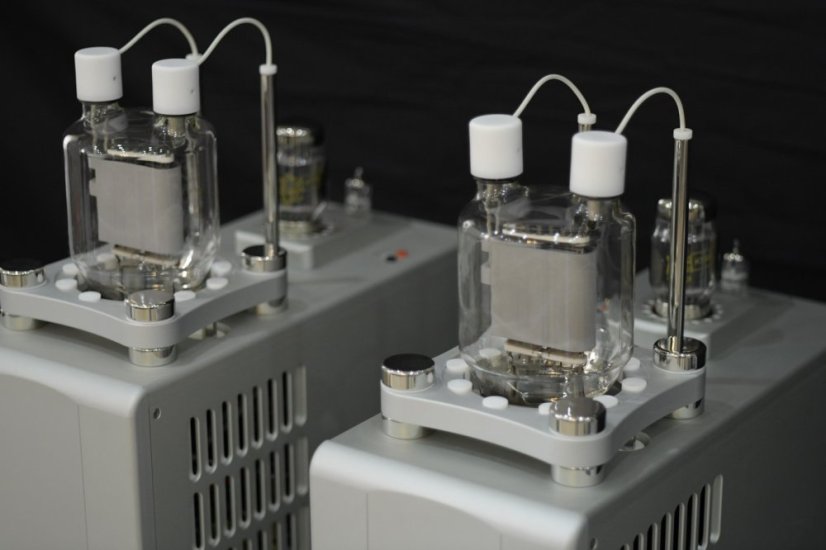

Both the amplifier and the power supply sections are isolated to reduce magnetic field interference from the two massive double C HIB power transformers, thus ensuring that pure power is supplied to the amplifier.The signal circuit is direct coupled and transformer coupled, eliminating capacitors from the signal path to avoid any compression of the dynamic range.The multiple independent power supplies use an effective π-shaped filter circuit for exceptional noise isolation.All the tube heaters use silicone-diode rectification. The π-shaped filter choke transformers are DC coupled to a large volume condenser to minimise hum.Both the driver and output transformers use a very complicated winding technique and are constructed of special magnetic materials so that a bandwidth of 10Hz- 120KHz. is achieved.The 833 tube sockets are machined from Teflon, and use gold plated phosphorous bronze round pins for exceptional contact and improved sound quality.The internal wiring is rectangular silver connection wire, carefully chosen duringextensive listening tests.The chassis is constructed of a very thick aluminium alloy, machined by precision CNC machinery to ensure its extreme strength, stability, reliability and resonant control properties.It is this attention to detail and lack of compromises that result in an exceptionally musical and stunningly clear sound reproduction, which brings the listener closer to the music and the music closer to the listener.

SPECIFICATION:

Power Tube 833

Tube complement - ECC88 or KT120,KT150 as the drivers, KT88 as the amplifiers .  833

Frequency response - 20Hz-100KHz

Input Impedance - 100k ohms

Input  sensitivity - 1.0Vrms

S / N - > 95dB

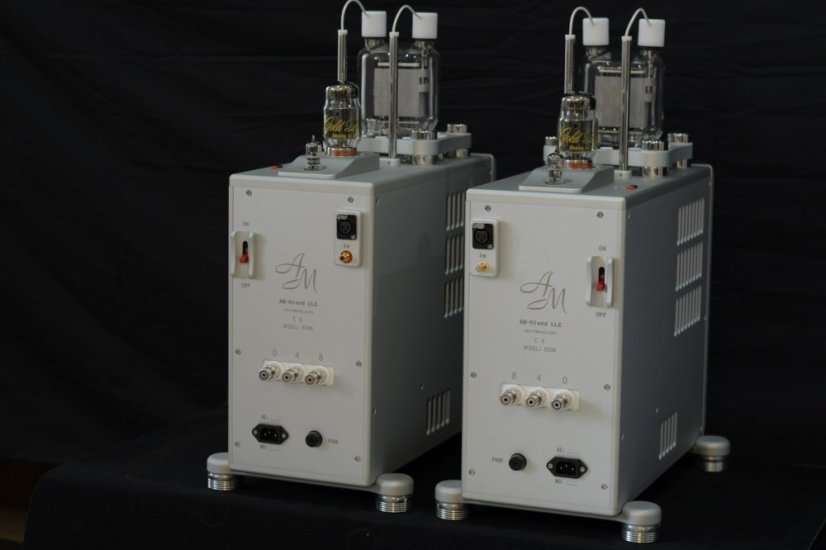

Input selections - RCA single-ended ;  balanced / XLR

Power Output - 120w/ch

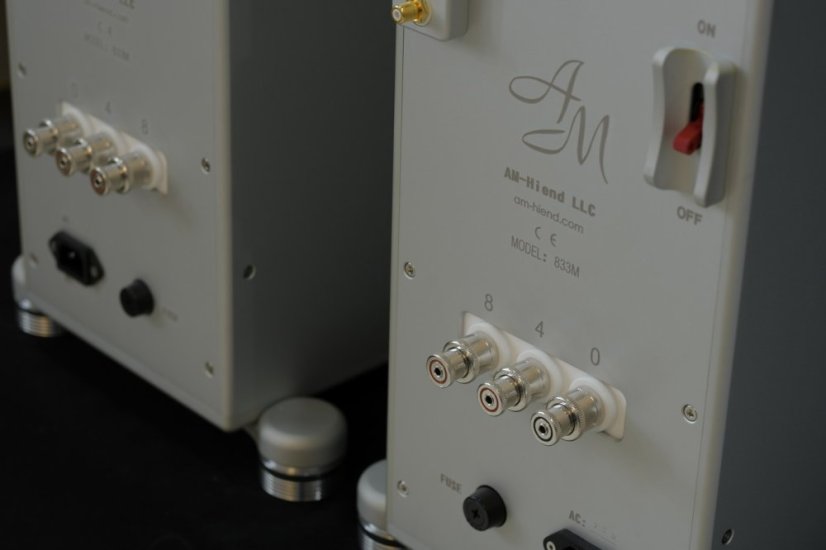

Load impedance - 4 & 8 ohms

Power consumption - 400W(each)

Power supply - 100,110,120,220,230,240 VAC 50-60Hz

Dimensions (W * D * H) - 400 X 500 X 284  (mm)

Weight - amplifier 50 Kg X 2
