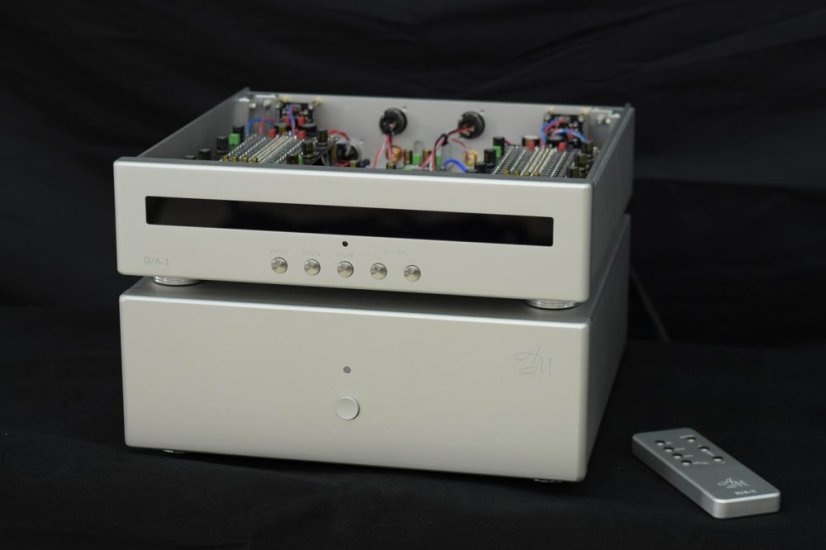

AM DAC/1

Decoder design features:

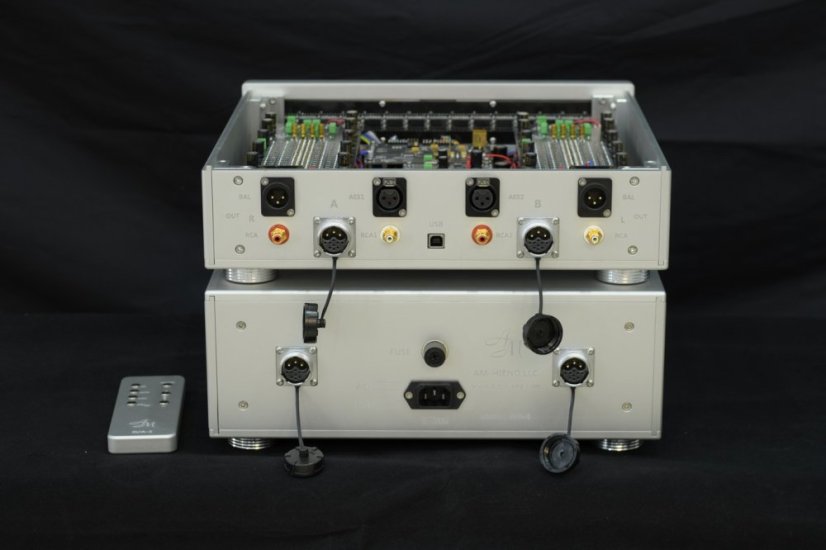

2 groups of coaxial input 2 groups of AES input
1 group of USB input
Output BAL RCA

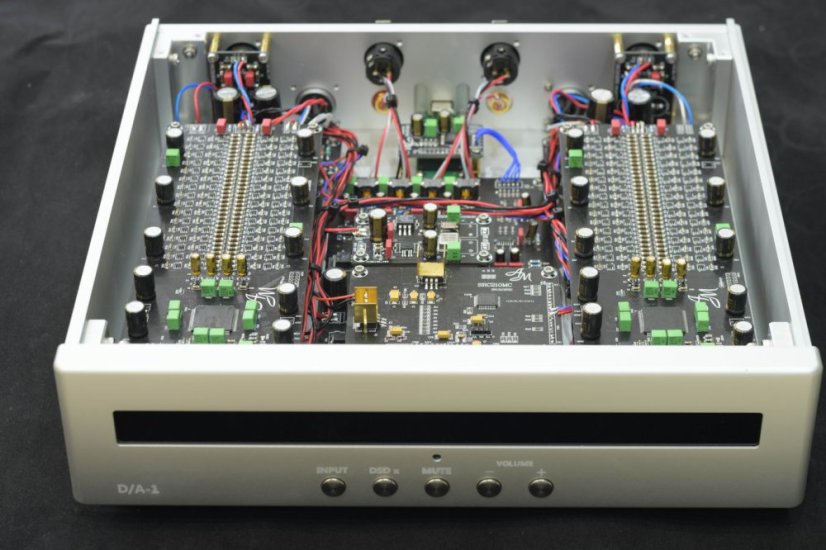

FPGA+resistor 4 pcs of silver digital transfomers silver connection wire
* Fully Balanced design down to the conversion point.
* Dynamically configurable between a discrete native DSD, or discrete native PCM DAC.
*The DAC has two modes:a multibit PCM mode and a massive parallel single-bit discrete DSD mode
* Based off a discrete ladder DAC design far beyond the performance of a basic R2R architecture.
* Control and display and DAC share a clock, which is more accurateEach DAC module is individually shielded and thermally bonded for a stringent temperature control.
* Multiple DACs per channel for increased performance and lower output impedance.
* Each DAC module is individually tested and then hand-matched with our rigorous automated measurement system.

The Premier DAC
Supported Formats (Input dependent) 44.1kHz to 768kHz PCM up to 32 bits
2xDSD, 4xDSD, 8xDSD
Supports DSD via DoP on all inputs
Digital Inputs 4x input

XLR Analog Outputs 3.57Vrms Maximum
150Ω Balanced
Galvanically isolated

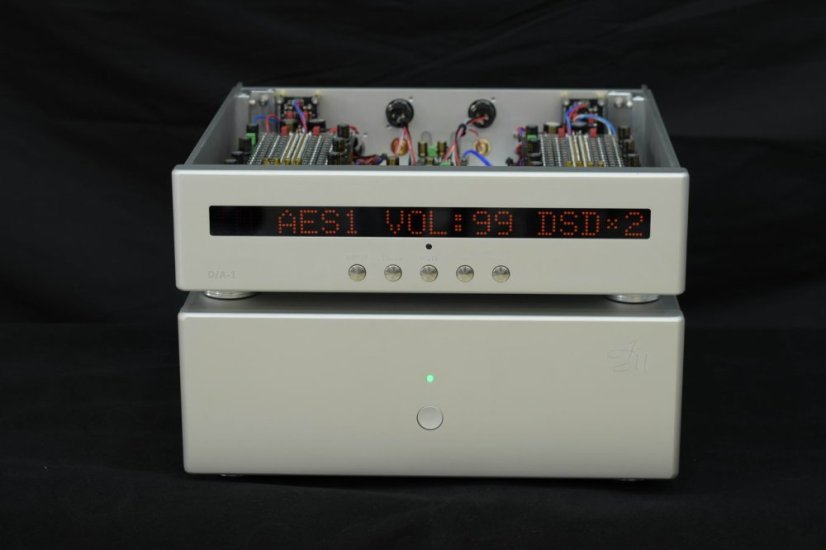

Volume Control 0.5dB steps (Range 0 - 100).
When the volume shows 99, then it does not go through DAC volume control
