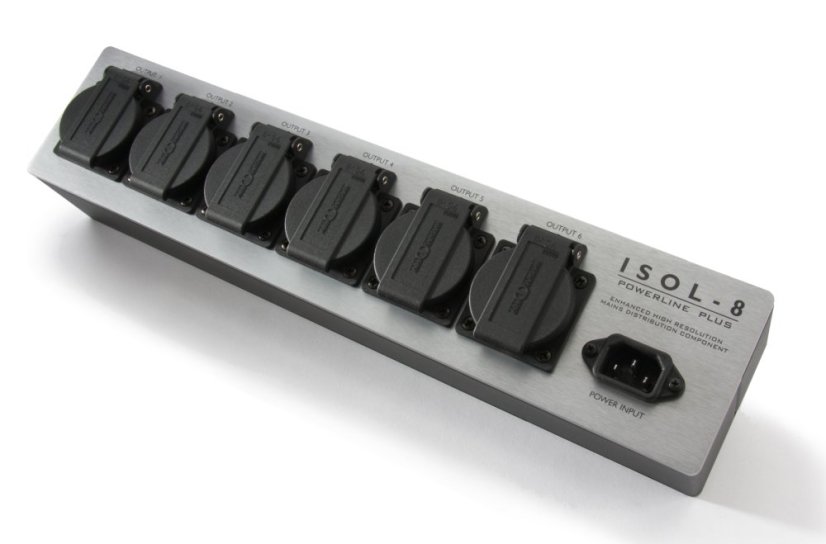

ISOL - 8 PowerLine Plus
ISOL - 8 PowerLine Plus
PowerLine Plus carries a number of features to lift performance still further. Mains earth has a finite impedance and does behave as an antenna, perfect for capturing RF energy. The PowerLine Plus earth line choke is custom made with a special high permeability core. This gives massive attenuation of any RF noise in the system earth bus and signal ground. The input connector is a rhodium plated IEC by Oyaide. Finally, a single pole shunt filter is fitted. This topology allows direct connection of the live and neutral conductors to the load, providing effective noise attenuation without any impact on peak current delivery.
More
Product code: PRD00274 Shipping and Payment

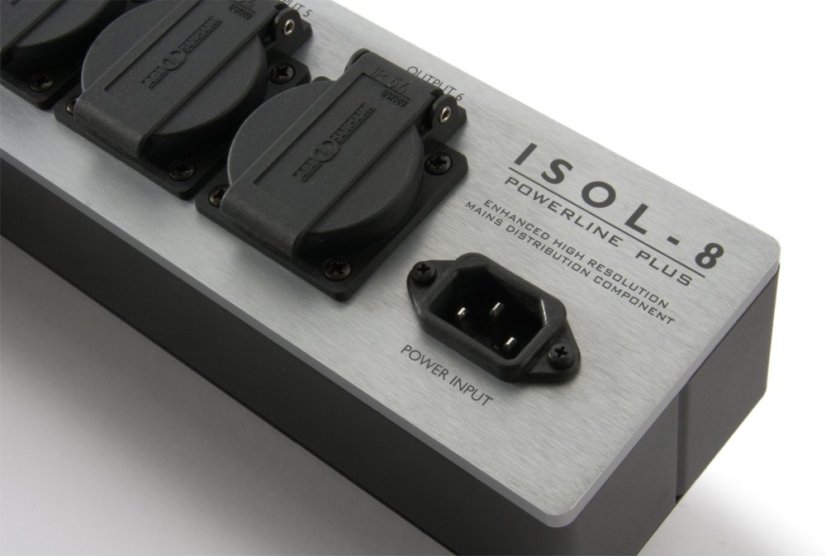

PowerLine Plus carries a number of features to lift performance still further. Mains earth has a finite impedance and does behave as an antenna, perfect for capturing RF energy. The PowerLine Plus earth line choke is custom made with a special high permeability core. This gives massive attenuation of any RF noise in the system earth bus and signal ground. The input connector is a rhodium plated IEC by Oyaide. Finally, a single pole shunt filter is fitted. This topology allows direct connection of the live and neutral conductors to the load, providing effective noise attenuation without any impact on peak current delivery.
More
Product code: PRD00274 Shipping and Payment
| Type of outlets available: | 13A British chassis sockets |
| European Shuko | |
| USA 15A | |
| Standard Mains Inlet: | IEC fused socket (Cable not supplied) |
| Dimensions: | 400 x 83 x 88mm (W x H x D) excluding connectors |
| 505 x 83 x 88mm (W x H x D) excluding connectors Ultra 6 way & Chroma | |
| 540 x 100 x 110mm (W x H x D) packaged | |
| Product Weight: | 1.7 Kg Powerline (6 way) |
| 1.8 Kg PowerLine Plus (6 way) | |
| 1.9kg Axis (5 way) | |
| 2.3Kg Ultra & 1080 (4 way) | |
| 2.9Kg Ultra & Chroma (6 way) | |
| Construction: | Aluminum top plate “titanium” anodise. Powder coated steel chassis |
| Mains Voltage: | 230VAC version for 220-240VAC |
| Maximum Current: | PowerLine, PowerLine Plus, PowerLine Axis: |
| 10 Amps across any one power outlet | |
| 10 Amps across all outlets | |
| PowerLine 1080, PowerLine Chroma: | |
| 5 Amps any one source/video power outlet | |
| 5 Amps across all source/video power outlets | |
| 10 Amps any one high power outlet | |
| 10 Amps across all high power outlets | |
| 10 Amps across all outlets | |
| PowerLine Ultra (4 and 6 way) | |
| 6.3 Amps any one source power outlet | |
| 6.3 Amps across all source power outlets | |
| 10 Amps any one high power outlet | |
| 10 Amps across all high power outlets | |
| 10 Amps across all outlets |
