MELCO - N10/2 - Color: black
MELCO - N10/2 - Color: black
A two-box design with an external power supply
The N10/2 is a two-box solution designed to improve sound quality by separating the unit’s power supply from the sensitive ‘head’ unit.
A half-width design, like the entry-level N100, the N10/2 offers easy placement in the home, but with the sound quality benefits of the enhanced N10 solid aluminium chassis and upgraded internals, plus the linear power supply.
Furthermore, the N10/s is available in two distinct varieties: a 5 TB HDD or a premium 3.84 TB SSD version. More
Manufacturer: MELCOProduct code: P00175-1 Shipping and Payment
A two-box design with an external power supply
The N10/2 is a two-box solution designed to improve sound quality by separating the unit’s power supply from the sensitive ‘head’ unit.
A half-width design, like the entry-level N100, the N10/2 offers easy placement in the home, but with the sound quality benefits of the enhanced N10 solid aluminium chassis and upgraded internals, plus the linear power supply.
Furthermore, the N10/s is available in two distinct varieties: a 5 TB HDD or a premium 3.84 TB SSD version. More
Manufacturer: MELCOProduct code: P00175-1 Shipping and Payment
- Half-width design benefitting from an external power supply for improved sound quality

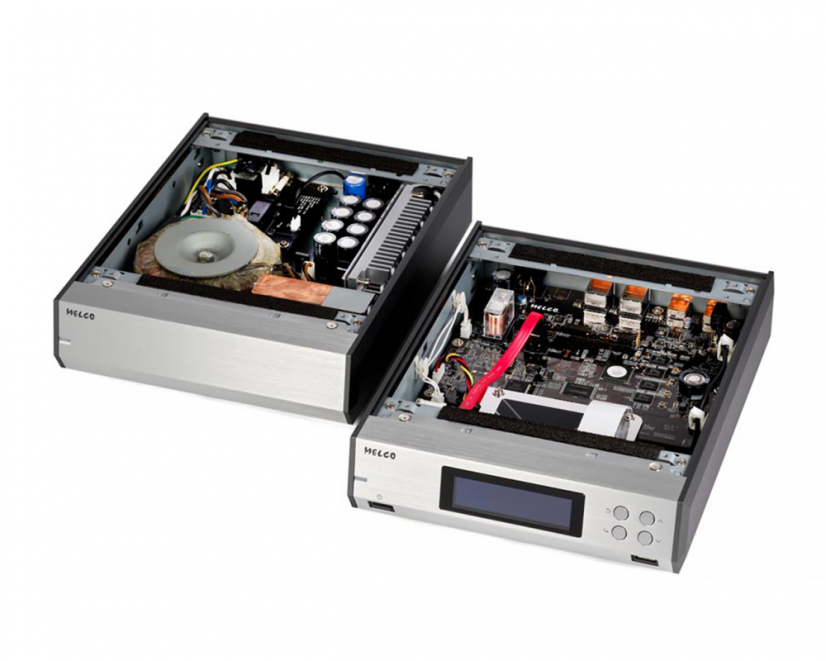

- The ‘head’ unit has both newly designed internal electronics hardware and new operating software, with an improved PCB
- Solid aluminium casework (including the end cheeks) for freedom from vibration
- Complex and rigid vibration-reducing internal chassis

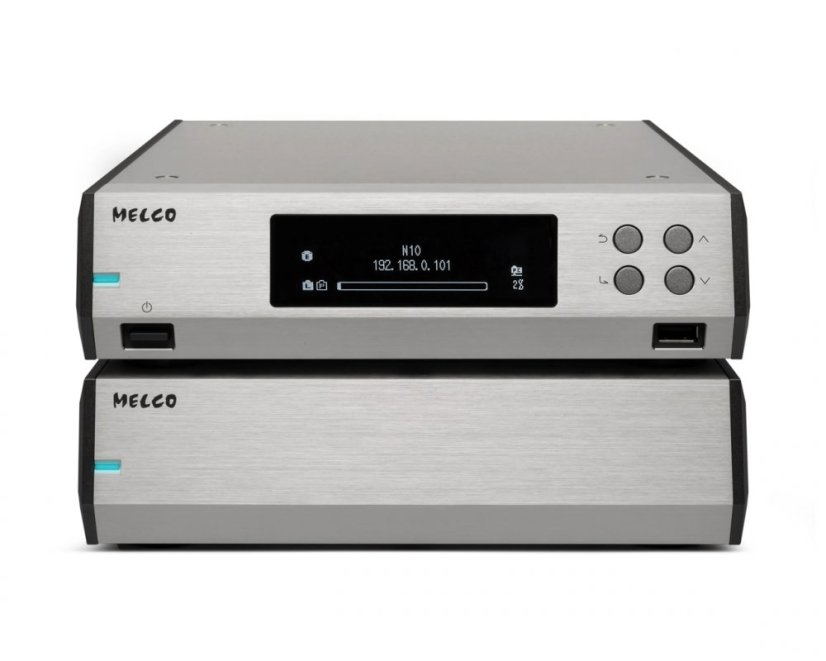

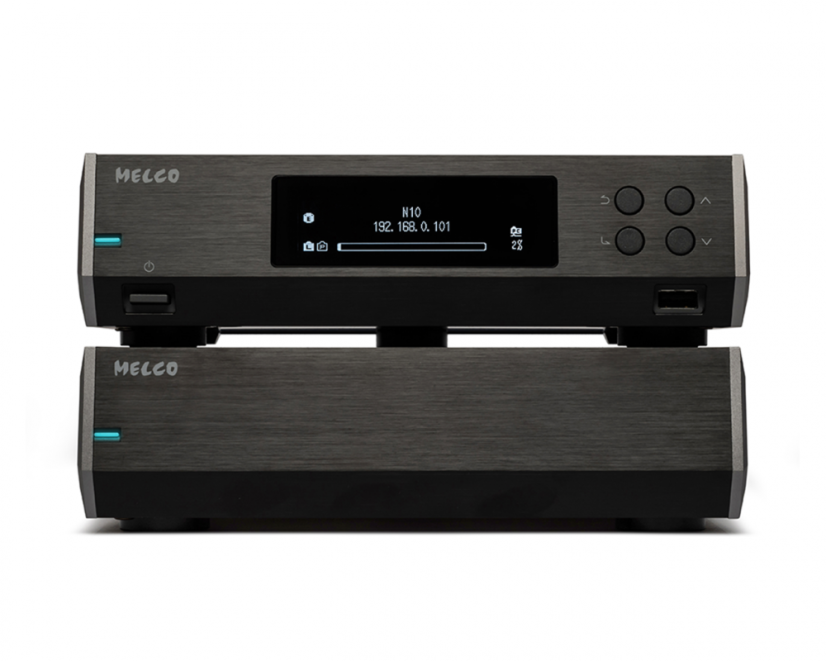

- Crystal-clear easy-read low-noise OLED display

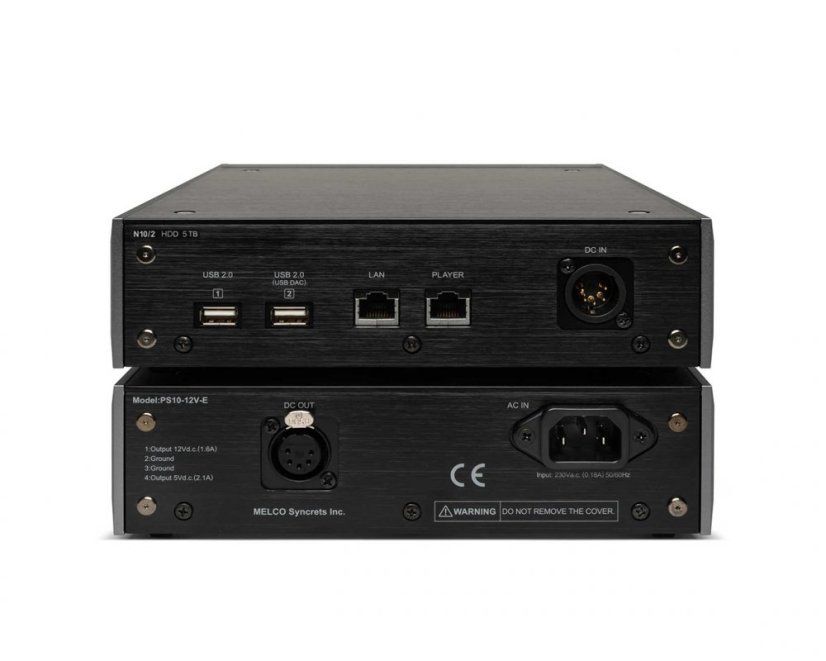

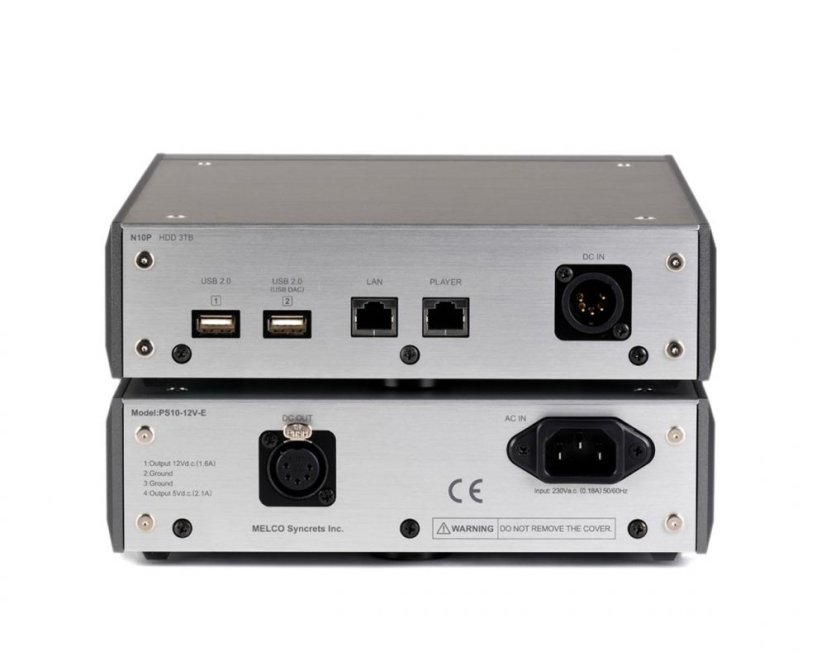

- 2x rear USB 2.0 ports for easy backup/expansion and USB DAC connectivity
- Dedicated Player and LAN ports for improved sound quality
Music storage
N10/2-S38 1 x 3.84 TB specially selected SSD on Melco HS-S2 isolation platform
Model
N10/2-S38B-E (Black, AC230V)
N10/2-S38-E (Silver, AC230V)
N10/2-S38B-EA (Black, AC120V)
N10/2-S38-EA (Silver, AC120V)
N10/2-H50 1 x 2.5-inch specially selected HDD 5TB on Melco HS-S2 isolation platform
Model
N10/2-H50B-E (Black, AC230V)
N10/2-H50-E (Silver, AC230V)
N10/2-H50B-EA (Black, AC120V)
N10/2-H50-EA (Silver, AC120V)
Network connectivity
LAN Port-Gigabit Ethernet (1000Base-T)
PLAYER port
Gigabit Ethernet (1000Base-T)
DHCP server in isolated mode
USB connectivity
USB 2.0 Front panel x 1
USB 2.0 Rear panel x 2
Assignable as DAC, backup, import, expansion
USB Player sample rate support
16-32 bit (PCM) to 384 kHz:- auto downsample to suit connected DACs
Gapless PCM support
1 bit (DSD) to 11.3 MHz Quad DSD
Markerless DSD support
DSD to 32-bit PCM conversion selectable
Gapless DSD support
OLED displays player sample rate
Power supply
Pre-set 220-240 V AC or 110-120 V AC dependent on locality
Low-noise, linear power supply
Size 215 x 61 x 269mm (W H L)
Weight head unit Approx. 3.5 kg
Weight power supply Approx. 5.0 kg
