X-quisite FIRE
X-quisite FIRE

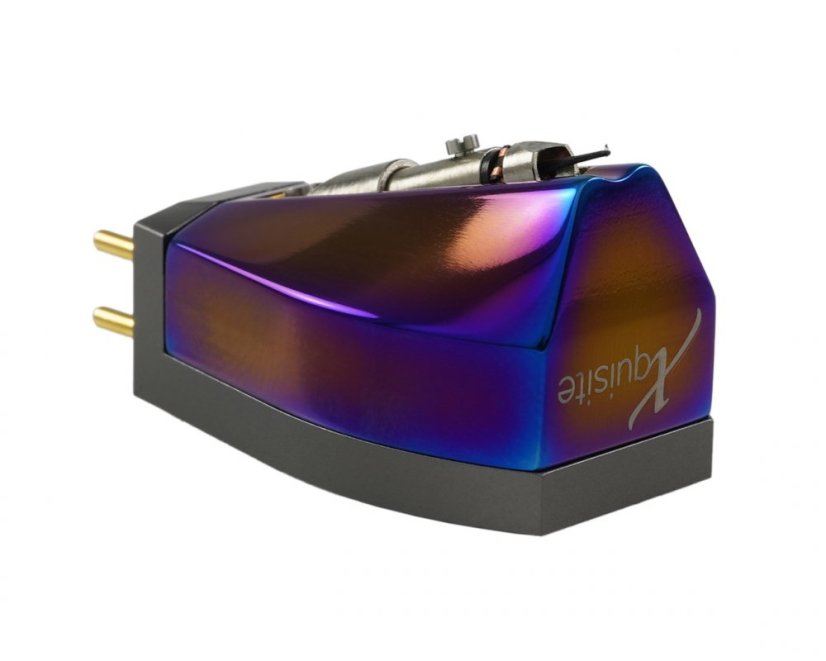

The monobloc-ceramic transducer of the X-quisite FIRE features an ironless coil and ensures supreme detail resolution and at the same time extremely natural sound. The titanium body gets a special coating process applied: each cartridge is a unique item regarding colour and gradient. The generator features a pure copper coil which has been carefully matched with an aluminium-holder to achieve most balanced sound characteristics.
Each X-quisite cartridge is handmade piece by piece and calibrated by Micha Huber personally.
All products with ironless transducer are demanding regarding the amplification, especially if the phono stage is equipped with step-up-transformers. Therefore, we have designed a matching transformer: SUT X-20. More
Product code: P00029 Shipping and Payment
The monobloc-ceramic transducer of the X-quisite FIRE features an ironless coil and ensures supreme detail resolution and at the same time extremely natural sound. The titanium body gets a special coating process applied: each cartridge is a unique item regarding colour and gradient. The generator features a pure copper coil which has been carefully matched with an aluminium-holder to achieve most balanced sound characteristics.
Each X-quisite cartridge is handmade piece by piece and calibrated by Micha Huber personally.
All products with ironless transducer are demanding regarding the amplification, especially if the phono stage is equipped with step-up-transformers. Therefore, we have designed a matching transformer: SUT X-20. More
Product code: P00029 Shipping and Payment
Specification
Cantilever and coil body: Monobloc ceramic unit, patented design
Coil: Pure copper 4N
Diamond shape: Micro ridge
Magnet unit: Neodym-Armco, reduced eddy current loss
Body: Titanium Unique
Connection: 1/2" – 4 pin, gold plated
Vertical Tracking Angle: 20°
Weight: 16,6 g
Tracking force: 1,9…2,1 g
Output voltage: 0,3 mV @ 5 cm/s
Compliance: 12 µm/mN
Bandwidth: 20-30000 Hz
FIM disortion: max. 0,2 %
Impedance: 2× 24 Ω
Recommended load: 400-800 Ω
