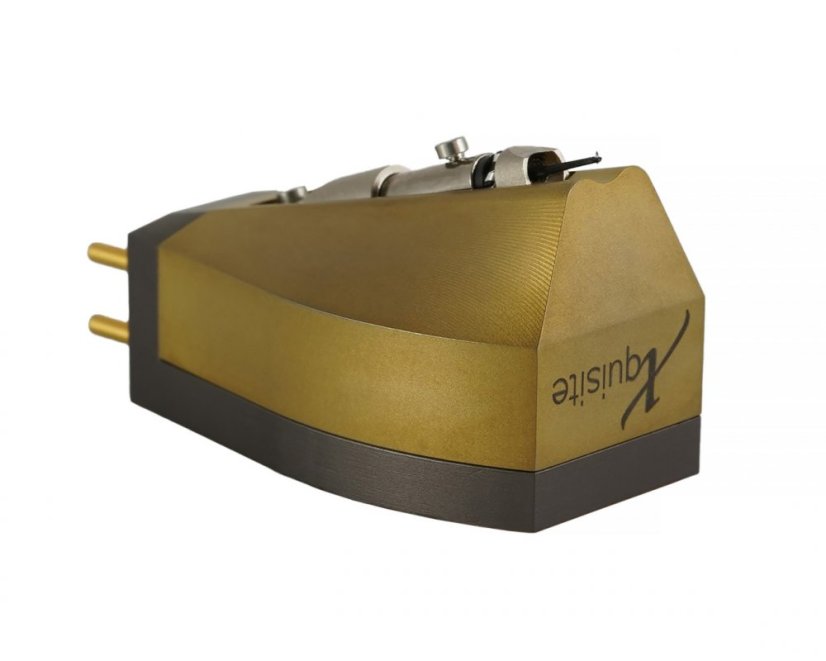

X-quisite ST
X-quisite ST
The monobloc-ceramic transducer of the X-quisite ST features an ironless coil and ensures supreme detail resolution and at the same time extremely natural sound. The generator features a pure silver coil which, covered by a titanium body that has been carefully matched an aluminium/wood-structure to achieve most involving sound characteristics.
Each X-quisite cartridge is handmade piece by piece and calibrated by Micha Huber personally.
All products with ironless transducer are demanding regarding the amplification, especially if the phono stage is equipped with step-up-transformers. Therefore, we have designed a matching transformer: SUT X-20. More
Product code: P00027 Shipping and Payment
The monobloc-ceramic transducer of the X-quisite ST features an ironless coil and ensures supreme detail resolution and at the same time extremely natural sound. The generator features a pure silver coil which, covered by a titanium body that has been carefully matched an aluminium/wood-structure to achieve most involving sound characteristics.
Each X-quisite cartridge is handmade piece by piece and calibrated by Micha Huber personally.
All products with ironless transducer are demanding regarding the amplification, especially if the phono stage is equipped with step-up-transformers. Therefore, we have designed a matching transformer: SUT X-20. More
Product code: P00027 Shipping and Payment
Specification
Cantilever and coil body: Monobloc ceramic unit, patented design
Coil: Pure silver 4N
Diamond shape: Micro ridge
Magnet unit: Neodym-Armco, reduced eddy current loss
Body: Titanium-aluminium-wood
Connection: 1/2" – 4 pin, gold plated
Vertical Tracking Angle: 20°
Weight: 16,6 g
Tracking force: 1,9…2,1 g
Output voltage: 0,3 mV @ 5 cm/s
Compliance: 12 µm/mN
Bandwidth: 20-30000 Hz
FIM disortion: max. 0,2 %
Impedance: 2× 20 Ω
Recommended load: 400-800 Ω
