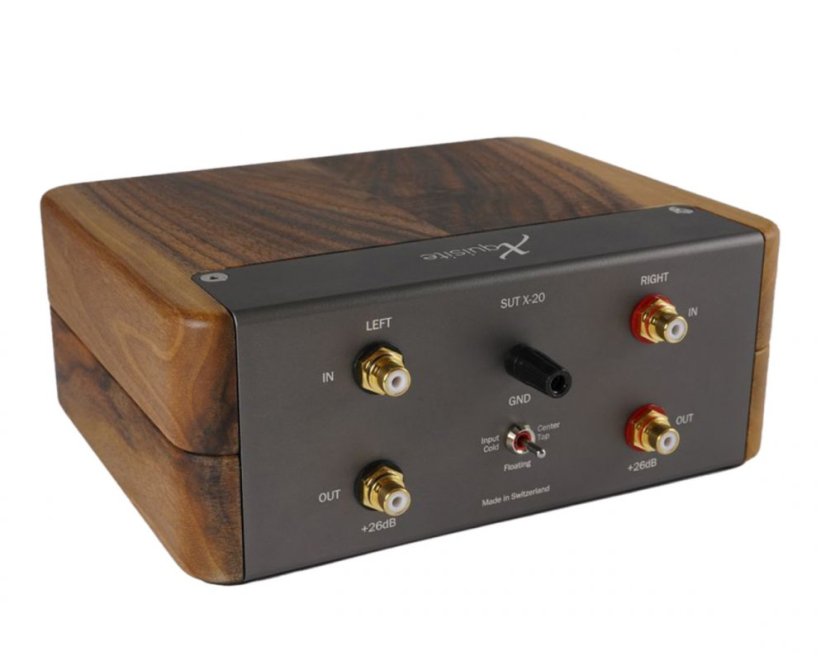

X-quisite SUT X-20
X-quisite SUT X-20
This puristic step-up transformer has been developed specifically for the ironless coil of the X-quisite cartridges and provides the best possible performance by matching the X-quisite generator in all aspects: magnetically, electrically, and mechanically. More
Product code: P00030 Shipping and Payment
This puristic step-up transformer has been developed specifically for the ironless coil of the X-quisite cartridges and provides the best possible performance by matching the X-quisite generator in all aspects: magnetically, electrically, and mechanically. More
Product code: P00030 Shipping and Payment
The magnetic circuit of this transformer has been optimized regarding eddy current and hysteresis loss to provide the best properties to the unique ceramic transducer in combination with a tube pre-amplifier. Because of the physical properties of the advanced core material, such design is possible only with high material cost and manufacturing effort.
The transformers are built into a painted wooden case or in a massive walnut-case as an option.
Specifikace
Gain: +26 dB (1:20)
Wire: Silver 4N
Core: Extreme low loss alloy
Ground options: Input Cold / Floating / Center Tap
Case: Painted wood (option: solid walnut)
Size: 200 × 160 × 80 mm
