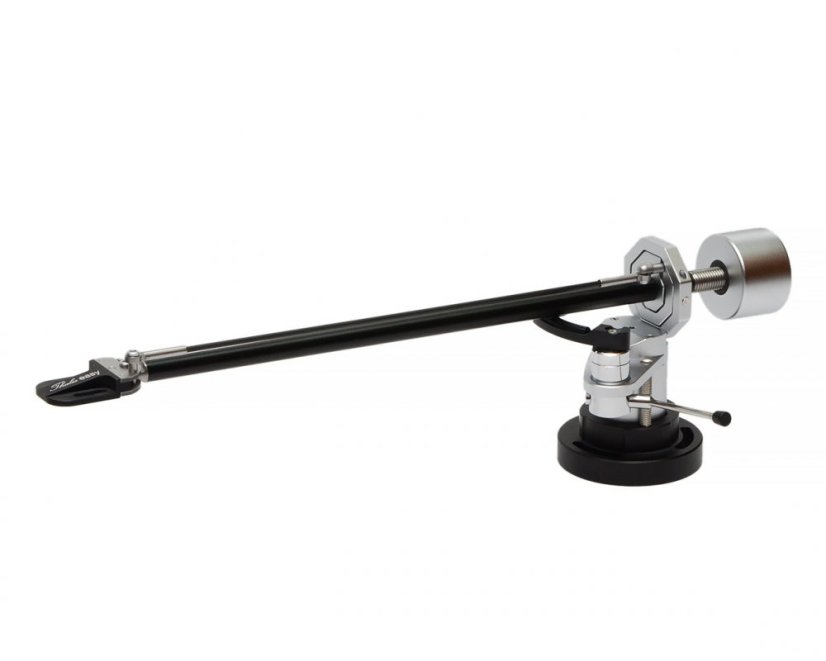

Thales Easy

The design of the tonearm enables a variable offset angle, and this is based on a newly developed and highly innovative geometry. The clever arrangement of six bearing points creates three null points for the horizontal tracking error, plus a zero point for the variable offset angle as well and this is really unique for a tonearm design.

This means the cartridge is guided along the ideal tracing line just like that of a parallel tracking tonearm. As well as perfect tracking, side forces are reduced tremendously, and this is clearly audible when listening to the Thales Easy tonearm.

Each tonearm will be delivered with a precise protractor for installation and adjustment. Two counterweights are also provided to allow a wide range of cartridges to be fitted.

Specification

• Effective mass: 10g
• Cartridge weight: 5...20g
• Mounting distance: 230mm
• Offset angle: variable
• Max. tracking error: 0,4°
• VTA adjustment: Thread
• Azimuth adjustment: Thread
• Coating: Chrome, anodized
• Signal output: 5-Pin DIN outlet
